System 411

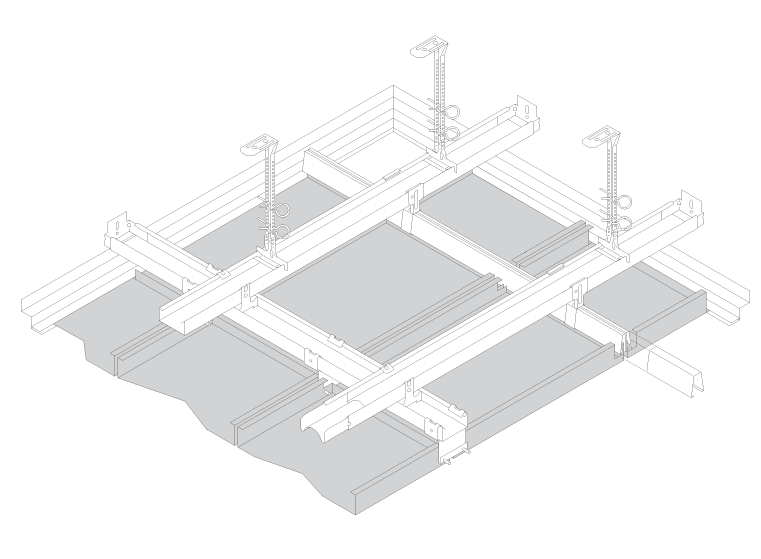

Hinge-down clip-in suspension system for metal planks or similar ceiling tiles

Ceiling system 411

System	Partially concealed clip-in system for metal planks and tiles
suitable for	Perforated and smooth metal planks and tiles, each removable
Characteristic	Symmetrical layout with butt joints

Components comply with the valid DIN-EN standards.

Quantities are estimated based on large ceiling areas. Modules connecting to walls are not considered in this statement. For smaller rooms the requirement of material can be considerably higher. Distances to be agreed with panel manufacturer. No responsibility is taken for this statement.

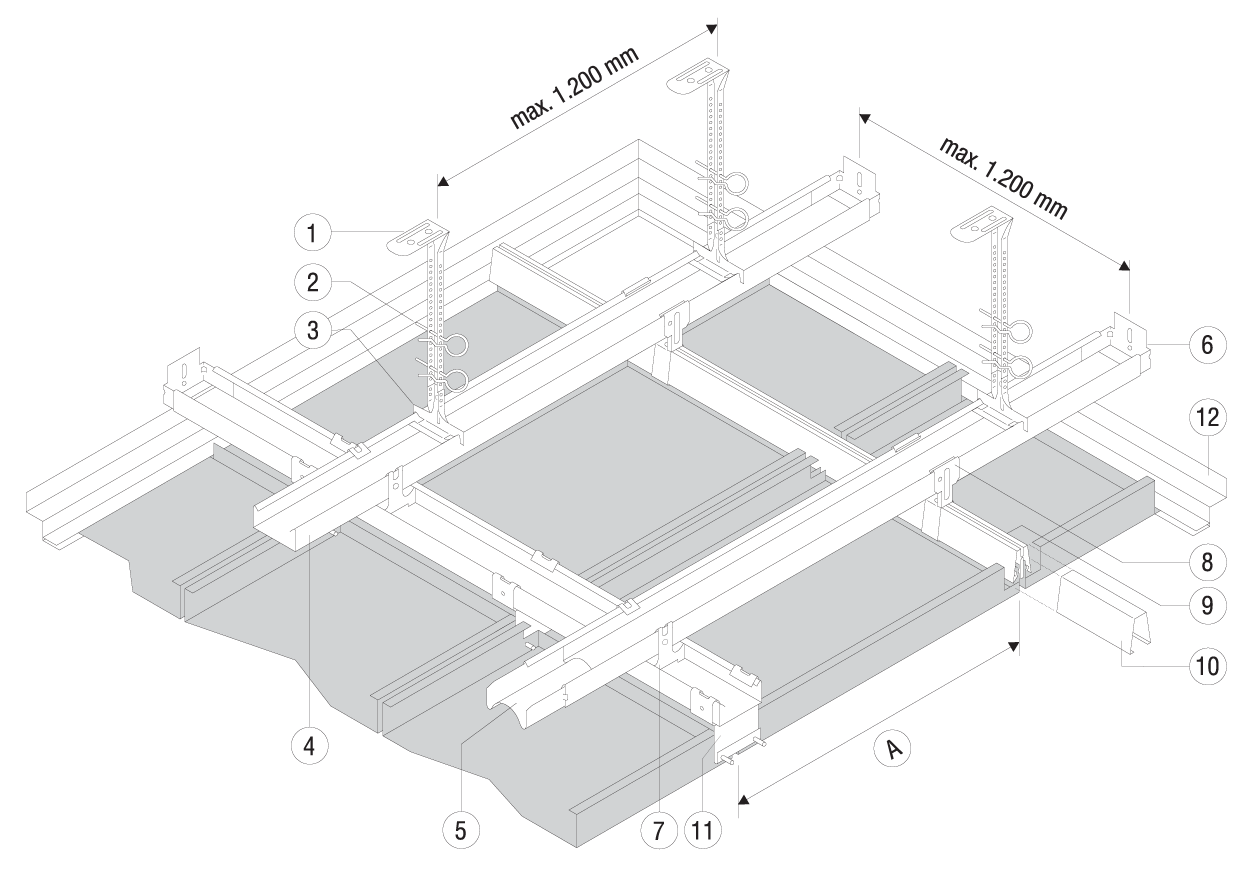

item	order no.	description	thickness	length	packing unit	quantity per sqm length of tiles A* 1.200 mm	quantity per sqm length of tiles A* 1.500 mm	quantity per sqm length of tiles A* 1.800 mm	quantity per sqm length of tiles A* 2.000 mm
1	1/30	nonius hanger upper part	1,00 mm	on demand	100 pcs	0,70 pcs*	0,70 pcs*	0,70 pcs*	0,70 pcs*
2	1/14	safety pin	2,50 mm	60 mm	100 pcs	1,40 pcs*	1,40 pcs*	1,40 pcs*	1,40 pcs*
3	1/37 C 62	nonius hanger lower part	1,25 mm	122 mm	100 pcs	0,70 pcs*	0,70 pcs*	0,70 pcs*	0,70 pcs*
4	DP 16	primary runner	0,40/1,25 mm	4.000 mm	32 Meter	1,26 Meter	1,18 Meter	1,12 Meter	1,09 Meter
5	1/104	splice	0,40/1,25 mm	110 mm	100 pcs	0,33 pcs	0,30 pcs	0,28 pcs	0,28 pcs
6	WA 16	wall anchor	0,40/1,25 mm	50 mm	100 pcs	on demand	on demand	on demand	on demand
7	1/22	interlocking cross	1,00 mm	55 mm	100 pcs	0,70 pcs	0,56 pcs	0,47 pcs	0,42 pcs
8	K 406	suspension bracket	0,50/1,00 mm	93 mm	100 pcs	0,70 pcs	0,56 pcs	0,47 pcs	0,42 pcs
9	K 455	double sided clip-in profile	0,50 mm	5.000 mm	35 Meter	0,42 Meter	0,34 Meter	0,28 Meter	0,25 Meter
10	K 470	splice	0,60 mm	100 mm	100 pcs	0,09 pcs	0,07 pcs	0,06 pcs	0,05 pcs
11	K 411	double-hinge	1,00 mm	65 mm	100 pcs	2 for first tile, 1 for each further tile	2 for first tile, 1 for each further tile	2 for first tile, 1 for each further tile	2 for first tile, 1 for each further tile
12	DP 51	f-shaped shadow edge trim	1,50 mm	5.000 mm	50 Meter	on demand	on demand	on demand	on demand

*We recommend at least one hanger per 1,5 sqm ceiling area.
