System 1700

Lay-in suspension system for metal tiles

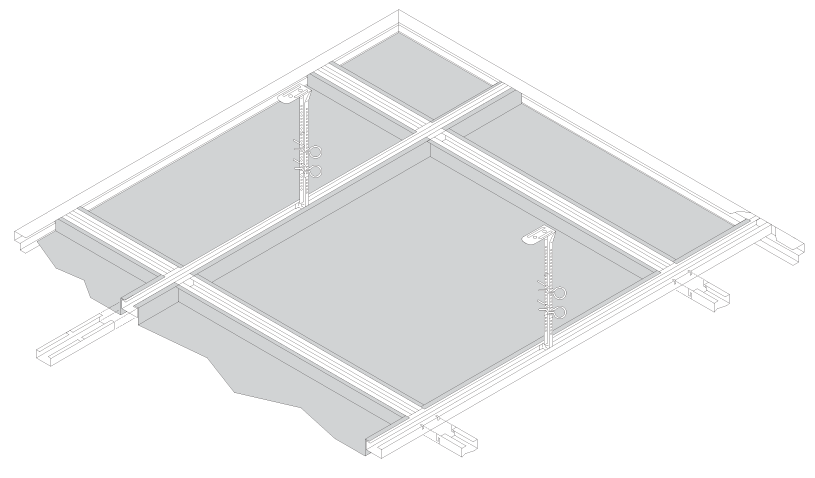

Ceiling system 1700

System	40 mm wide, modular grid system
suitable for	Perforated and smooth metal tiles, each removable
Characteristic	Symmetrical layout with butt joints

Components comply with the valid DIN-EN standards.

Quantities are estimated based on large ceiling areas. Modules connecting to walls are not considered in this statement. For smaller rooms the requirement of material can be considerably higher. Distances to be agreed with panel manufacturer. No responsibility is taken for this statement.

item	order no.	description	thickness	length	packing unit	quantity per sqm module size 600x600 mm	quantity per sqm module size 625x625 mm	quantity per sqm module size 1.200x1.200 mm	quantity per sqm module size 1.250x1.250 mm
1	1/30	nonius hanger upper part	1,00 mm	on demand	100 pcs	2,78 pcs*	2,56 pcs*	0,70 pcs*	0,64 pcs*
2	1/14	safety pin	2,50 mm	60 mm	100 pcs	5,56 pcs*	5,12 pcs*	1,40 pcs*	1,28 pcs*
3	1/37 X	nonius hanger lower part	1,00 mm	250 mm	100 pcs	2,78 pcs*	2,56 pcs*	0,70 pcs*	0,64 pcs*
4	DP 88 A/B/H/I	main c-profile	1,00 mm	4.800/ 5.000 mm	12 pcs	1,67 Meter	1,60 Meter	0,84 Meter	0,80 Meter
5	1/106	splice	1,00 mm	150 mm	100 pcs	0,35 pcs	0,32 pcs	0,18 pcs	0,16 pcs
6	DP 88 C/D/E/F/G K/L/M/N/O	cross c-profile	1,00 mm	560/1.160 mm 585/1.210 mm	16 pcs	1,67 pcs	1,60 pcs	0,84 pcs	0,80 pcs
7	DP 89	shadow edge trim	0,75 mm	4.000 mm	40 Meter	on demand	on demand	on demand	on demand

*We recommend at least one hanger per 1,5 sqm ceiling area.
